Description
The Ultraflex GoTech-OBF Hydraulic Steering System, has been designed for single, outboard engines up to 115 hp and maximum boat speed up to 39 knots.

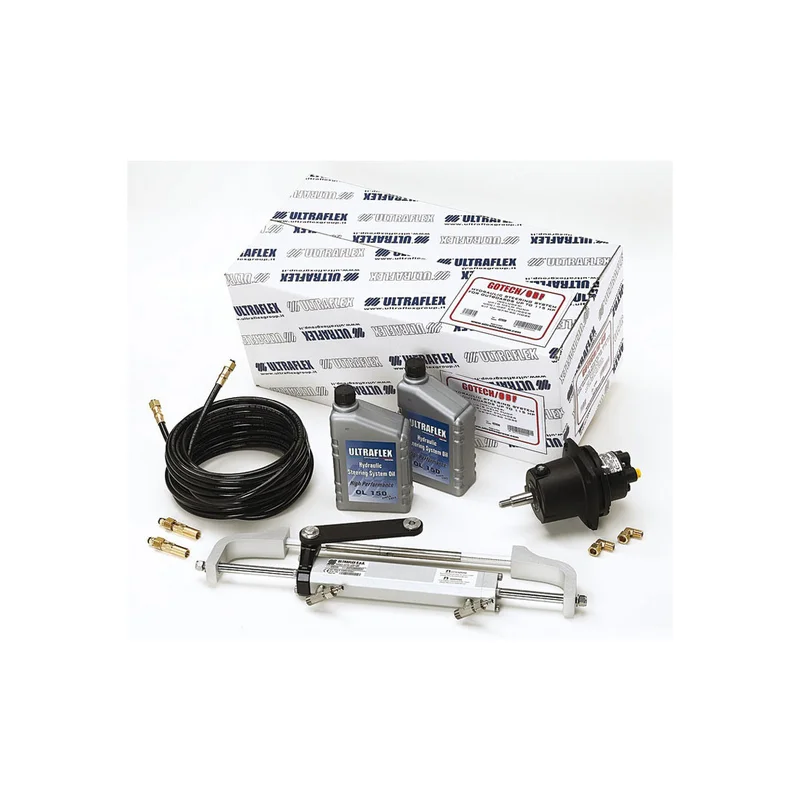

The Ultraflex Gotech-OBF package kit includes:
1) UP18 Intermediate Mount Position Helm
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
3/4 tapered stainless steel shaft
Includes 2x 1/4 NPT fittings
Corrosion proof composite housing
Easy accessible lock valve and shaft seal for replacement
For use with UC81-OBF cylinder only
Displacement/Revolution: 18 CC – 1.1
No. of Pistons: 5
Max. Wheel Diameter: 508 MM
Weight: 3,6 KG
2) UC81-OBF Front Mount Cylinder
Balanced: the number of wheel turns lock-to-lock is equal port to starboard and vice-versa.
Replaceable cylinder end caps
According to the different engines UC81-OBF can be installed either starboard or port
3) A pair of high pressure flexible hose diameter 1/4 with fittings, featuring turning nuts, preassembled at one end only and supplied with 2 non assembled fittings. Available at 6 m standard length that can be cut to fit the desired application.
4) 2 Litres OL 150 Hydraulic oil
Compatible with 95/25 CE and ISO 10592 Standards.
For outboard engines up to 115 hp.
Product Code: 42634G
