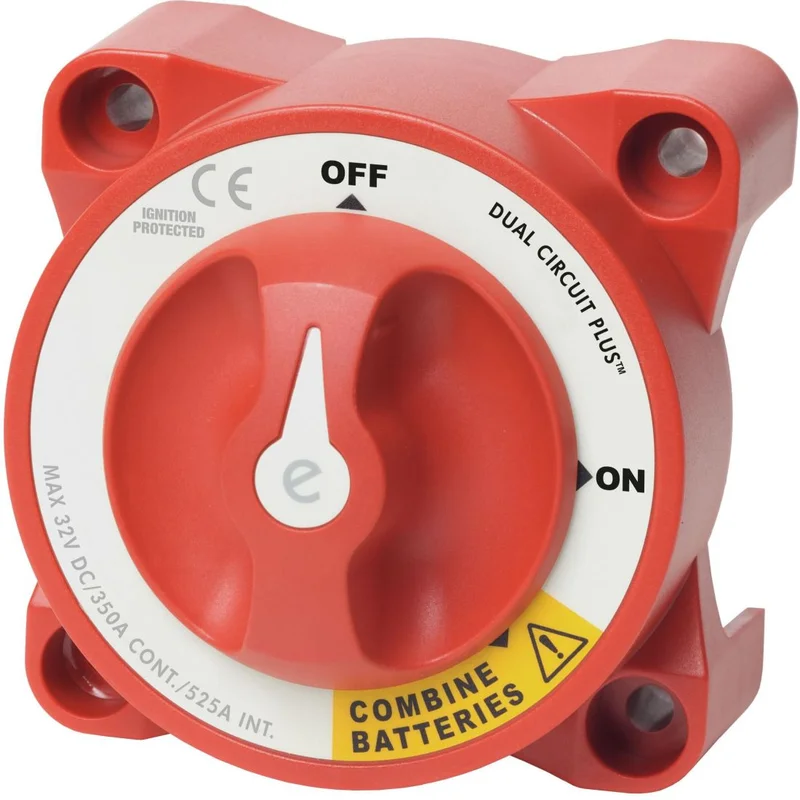

Electron Dual Circuit Plus Battery Switch

Description

The Electron Dual Circuit Plus Battery Switch, isolate the Start and House battery circuits, preventing accidental discharge of the starting bank and protecting your electronics from engine starting sags and spikes. Ideal when combined with an Automatic Charging Relay, which will automate charging, while the Dual Circuit Plus will simplify the switching process.

In case of an emergency, this switch allows you to combine two battery banks in the ON position. The combine feature allows you to cross-connect your battery banks to start the engine, or make a radio call.

Capable of 350 Amperes continuous rating per circuit, this battery switch is ignition-protected and safe for use aboard gas-powered boats.

Features long 7/8″ studs that accept up to 4/0 cables. Because these studs are cast into the body of the switch, they will accept the high torque loads required to create a secure connection that minimizes resistance.

Technical Characteristics

Provides simplified simultaneous switching of two battery banks, while maintaining their separation

Provides an emergency combine feature to draw power from both batteries for starting, or radio calls

Compact design makes installation in tight places easy

Ignition protected and can be mounted in the engine room of gasoline powered boats

Tin plated copper studs on the battery switch provide maximum conductivity and corrosion resistance

One Piece Copper studs are 7/8long and accept multiple cables

Switch Type: Dual Circuit Plus

Switch Positions: 3

Battery Combine: Yes

Alternator Field Disconnect: No

Maximum Voltage: 32V

Continuous Rating: 350A

Intermittent Rating : 525A

Cranking Rating : 700A

Battery Inputs: 2

Cable Size to meet ratings: 4/0 AWG

Terminal Stud Size: 3/8″

Dimensions: 98 x 98 x 79 mm
