Description

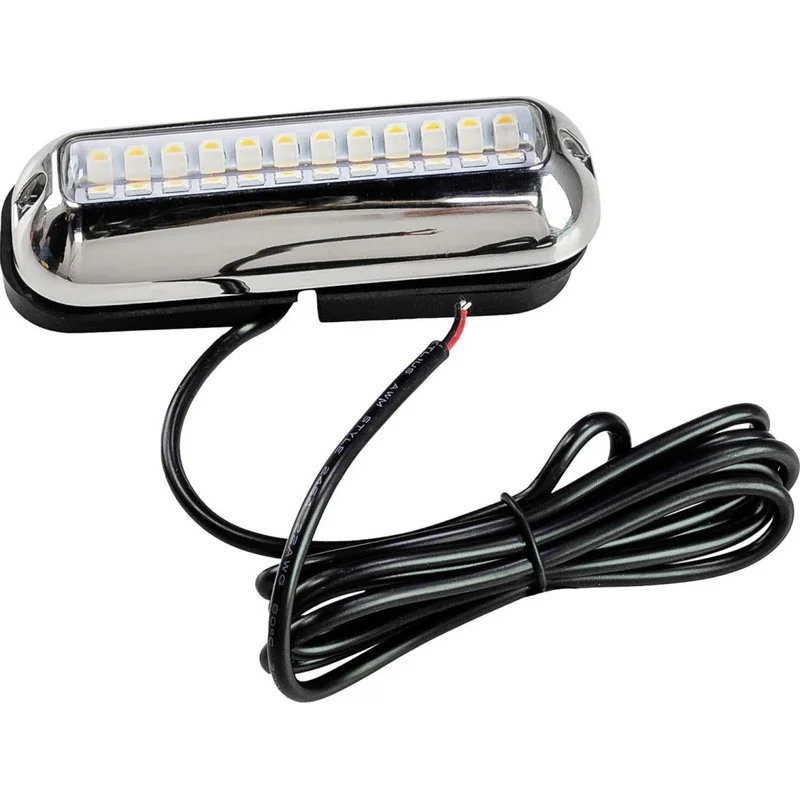

The AAA RGBW underwater led light has been designed for surface mount, on boats.
The Led lamps can alternate amongst 4 colors in total, in the following sequence: White, Blue, Red, Green. By activating the switch to ON, the light will turn to White color and remain White. If you instantly turn the switch to OFF and to ON again, then the light will turn to Blue, etc.
Download here the 24 Leds – 2.4 W instalation diagram.
Download here the 18 Leds – 1.2 W instalation diagram.
Technical Characteristics
Surface Mounting
Four Lighting Colors: White, Blue, Red, Green
Material: Plastic + S.S. 316 Trim ring
Led Lifetime: 50.000hrs
Color Temperature: 5500 – 6300K
Voltage: 12 VDC
Watertight: IP68
| Model | Leds | Dimensions | Watts | Effective Lumen |
| 00302-RGBW | 24 | 120 mm x 41.5 mm x 23.5 mm | 2.4 W | WH: 218LM/ BU: 34LM/ GN: 106LM/ RD: 19LM |
| 00301-RGBW | 18 | 95 mm x 41.5 mm x 23.5 mm | 1.2 W | WH: 95LM/ BU: 10.2LM/ GN: 67LM/ RD: 12LM |
